A butterfly valve is a valve used for flow regulation in large pipe diameters in which the disc takes the form of disk. Operation is similar to that of a ball valve. A plate or disc is positioned in the center of the pipe. The disc has a rod passing through it that is connected to an actuator on the outside of the valve. Rotating the actuator turns the disc either parallel or perpendicular to the flow. Unlike a ball valve, the disc is always present within the flow, therefore a pressure drop is always induced in the flow, regardless of valve position.

Actuated | AWWA

Actuated Butterfly Control Valves, control the flow of gas or liquid by means of a disk, which turns on a diametrical axis inside a pipe or by two semicircular plates hinged on a common spindle, which permits flow in only one direction. These valves offer a rotary stem movement of 90 degrees or less, in a compact design. Unlike ball valves, they do not have any pockets in which fluids may become trapped when the valve is closed. They are quick opening valves that consist of a metal circular disc or vane with its pivot axes at right angles to the direction of flow in the pipe, which when rotated on a shaft, seals against seats in the valve body. They are normally used as throttling valves to control flow.

AWWA Standards are vital guidelines for all facets of the drinking water community. They provide the minimum requirements for design, installation, performance, and manufacturing of products used in the water industry, including pipe, chemicals, storage facilities, valves, and other appurtenances.

From a family of valves called quarter-turn valves, the "butterfly" is a metal disc mounted on a rod. When the valve is closed, the disc is turned so that it completely blocks off the passageway. When the valve is fully open, the disc is rotated a quarter turn so that it allows an almost unrestricted passage of the fluid.

The valve may also be opened incrementally to throttle flow.

There are different kinds, each adapted for different pressures and different usage.

Sylax® Wafer & Lug Style

SYLAX®  LUG (DI)
SYLAX® LUG (DI)
Butterfly Valves
Size(s): 2 to 12 in. (50 to 300 mm)
SYLAX®  LUG (SS)
SYLAX® LUG (SS)
Butterfly Valves
Size(s): 2 to 12 in. (50 to 300 mm)
SYLAX® WAFER (SS)
SYLAX® WAFER (SS)
Butterfly Valves
Size(s): 2 to 12 in. (50 to 300 mm)
SYLAX®  WAFER (DI)
SYLAX® WAFER (DI)
Butterfly Valves
Size(s): 2 to 12 in. (50 to 300 mm)

Butterfly Valve Actuator

SYLAX® LUG ELECTRIC ACTUATED (DI)
SYLAX® LUG ELECTRIC ACTUATED (DI)
Butterfly Valves
Size(s): 2 to 12 in. (50 to 300 mm)
SYLAX® LUG ELECTRIC ACTUATED (SS)
SYLAX® LUG ELECTRIC ACTUATED (SS)
Butterfly Valves
Size(s): 2 to 12 in. (50 to 300 mm)

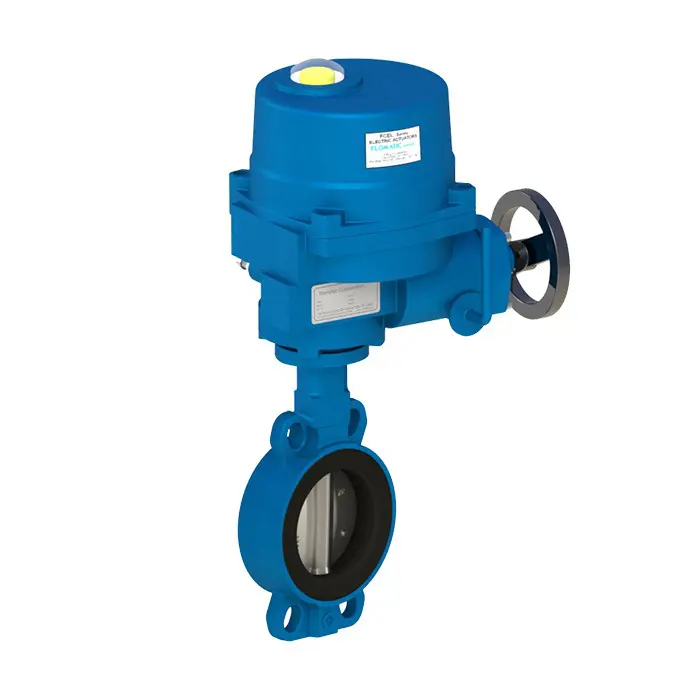

SYLAX® WAFER (DI) ELECTRIC ACTUATED
SYLAX® WAFER (DI) ELECTRIC ACTUATED
Butterfly Valves
Size(s): 2 to 12 in. (50 to 300 mm)
SYLAX®  WAFER (SS) ELECTRIC ACTUATED
SYLAX® WAFER (SS) ELECTRIC ACTUATED
Butterfly Valves
Size(s): 2 to 12 in. (50 to 300 mm)

Kwik-Close®

Kwik-Close®
Kwik-Close®
Butterfly Valves
Size(s): 3 to 16 in. (80 to 400 mm)

Azure®

SMART CARD
SMART CARD
Butterfly Valve
Size(s):
Azure® Butterfly w/ Actuator
Azure® Butterfly w/ Actuator
Butterfly Valve
Size(s): 3 to 24 in. (80 to 240 mm)
Azure® Lever Operated
Azure® Lever Operated
Butterfly Valve
Size(s): 3 to 6 in. (80 to 200 mm)

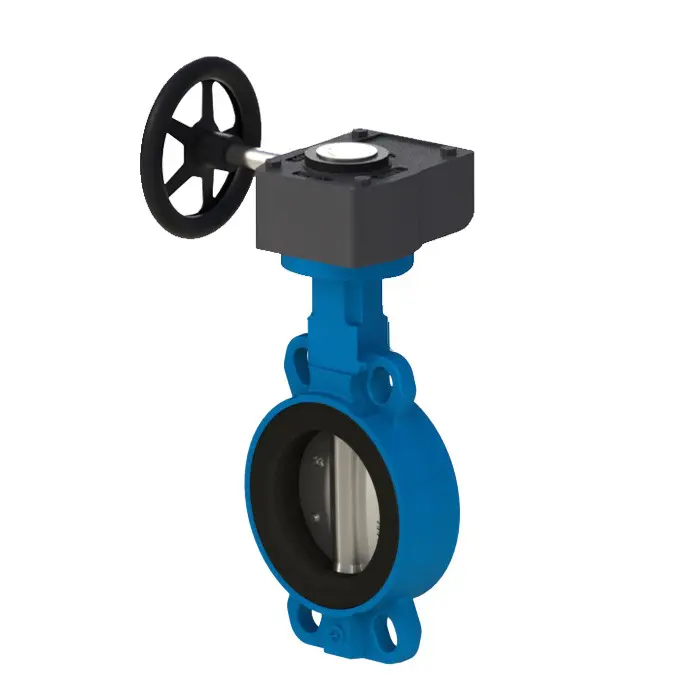

Azure® Gear Operated
Azure® Gear Operated
Butterfly Valve
Size(s): 3 to 24 in. (80 to 600 mm)

Butterfly Valves, Wafer & Lug Style

  • Pressure Max: 200 PSI Working Temp: Max 230°F (110C) 149G (DUCTILE IRON DISC) - SYLAX® Full Lug Series Cast iron body with epoxy coated ductile iron disc. Seat Liner EPDM (Buna-N optional) with standard ISO top flange for direct mounting of actuator. Size(s): 2 to 12 in. (50 to 300 mm)
    SYLAX
    Manufactured by: Flomatic Corporation
    Model: Lug Style
    Product ID: LUG (DI)
  • Pressure Max: 200 PSI Working Temp: Max 230°F (110°C) 149G (316SS DISC) - SYLAX® Full Lug Series - Cast iron body with 316 stainless steel disc. Seat Liner EPDM (Buna-N optional) with standard ISO top flange for direct mounting of actuator. Size(s): 2 to 12 in. (50 to 300 mm)
    SYLAX
    Manufactured by: Flomatic Corporation
    Model: Lug Style
    Product ID: LUG (SS)
  • Pressure Max: 200 PSI Working Temp: Max 230°F (110°C) 149G (316SS DISC) - SYLAX® Full Lug Series - Cast iron body with 316 stainless steel disc. Seat Liner EPDM (Buna-N optional) with standard ISO top flange for direct mounting of actuator. Size(s): 2 to 12 in. (50 to 300 mm)
    SYLAX
    Manufactured by: Flomatic Corporation
    Model: Wafer Style
    Product ID: WAFER (SS)
  • Pressure Max: 200 PSI Working Temp: Max+230°F (+110°C) 149G (DUCTILE IRON DISC) SYLAX® Wafer Style Series Cast iron body with epoxy coated ductile iron disc. Seat Liner EPDM (Buna-N optional) with standard ISO top flange for direct mounting of actuator. Size(s): 2 to 12 in. (50 to 300 mm)
    SYLAX
    Manufactured by: Flomatic Corporation
    Model: Wafer Style
    Product ID: WAFER (DI)

Butterfly Valves, Electric Actuator

  • SYLAX® FULL LUG SERIES 149GA Body: Cast Iron Disc: Epoxy Coated Ductile Iron Seat Liner: EPDM Size(s): 2 to 12 in. (50 to 300 mm)
    SYLAX
    Manufactured by: Flomatic Corporation
    Model: Lug Style
    Product ID: ELECTRIC ACTUATED (DI)
  • SYLAX® FULL LUG SERIES 149GA Body: Cast Iron Disc: 316 Stainless Steel Seat Liner: EPDM Size(s): 2 to 12 in. (50 to 300 mm)
    SYLAX
    Manufactured by: Flomatic Corporation
    Model: Lug Style
    Product ID: LUG ELECTRIC ACTUATED (SS)
  • SYLAX® WAFER STYLE SERIES 149GA-010 Body: Cast Iron Disc: Epoxy Coated Ductile Iron Seat Liner: EPDM Size(s): 2 to 12 in. (50 to 300 mm)
    SYLAX
    Manufactured by: Flomatic Corporation
    Model: Wafer Style
    Product ID: WAFER ELECTRIC ACTUATED (DI)
  • SYLAX® WAFER STYLE SERIES 149GA Body: Cast Iron Disc: 316 Stainless Steel Seat Liner: EPDM Size(s): 2 to 12 in. (50 to 300 mm)
    SYLAX
    Manufactured by: Flomatic Corporation
    Model: Wafer Style
    Product ID: WAFER ELECTRIC ACTUATED (SS)
  • Pressure Max: 200 PSI Working Temp: Max +230°F (+110C) SERIES 6000 (NICKEL PLATED DUCTILE IRON DISC) Wafer Style butterfly valve,cast iron body. Seat Liner EPDM standard ISO top flange. 10 position lever handle. Size(s): 2 to 16 in. (50 to 400 mm)
    Kwik-Close
    Manufactured by: Flomatic Corporation
  • New digital high resolution controller for use in the Flomatic FCEL Series Electric Actuators. The DHC-100 is a high resolution controller/positioner: - for use in the FCEL series AC electric actuators - with operating times from 2 to 120 seconds - that can be configured for various command types (4-20mA, 1-5V, 0-5V, 0-10V, or a digital command) and a fail position on loss of signal With its modular design a variety of options are easily plugged in providing other features. A wide range of data is accessible through a digital communications module providing additional control and information.
    Azure
    Manufactured by: Flomatic Corporation
    Model: SMART CARD
  • Pressure Max: 200 PSI (14bar) Working Temp: Max+180°F (82C) MODEL 45 - Electric actuated, Azure® butterfly valve, 110 vac power, manual handwheel override for open/close service. - Cast ductile iron flanged body. ASTM A536 Cast ductile iron disc with stainless type 316 edge. Seat, standard NBR (EPDM optional)bonded and vulcanized. Complies with AWWA standard C504. Direct mounting of actuator. Size(s): 3 to 24 in. (80 to 240 mm)
    Azure
    Manufactured by: Flomatic Corporation
    Model: Butterfly w/ Actuator
  • Pressure Max: 200 PSI (14bar) Working Temp: Max+180°F (82C) C504 (Lever Operated) - Cast ductile iron flanged body. ASTM A536 Cast ductile iron disc with stainless type 316 edge. Seat, standard NBR (EPDM optional)bonded and vulcanized. Complies with AWWA standard C504. Direct mounting of actuator. Size(s): 3 to 6 in. (80 to 200 mm)
    Azure
    Manufactured by: Flomatic Corporation
    Model: Lever Operated
  • Pressure Max: 200 PSI Working Temp: Max+180°F (82C) C504 (Gear Operated) - Cast ductile iron flanged body. ASTM A536 Cast ductile iron disc with stainless type 316 SS edge. Seat, standard NBR (EPDM optional)bonded and vulcanized.Complies with AWWA standard C504. Direct mounting of actuator. Size(s): 3 to 24 in. (80 to 600 mm)
    Azure
    Manufactured by: Flomatic Corporation
    Model: Gear Operated
