Cycle Gard®

Constant Pressure Pump Control
Valves
||
SOLUTION
||
PEACE OF MIND

Durable & Dependable

Cycle Gard® constant pressure pump control valves stand as reliable, long-lasting solutions for maintaining steady downstream pressure in various water systems. Engineered to deliver unwavering performance, these valves regulate system pressure, preventing short cycling and ensuring a consistent pressure flow irrespective of demand fluctuations. Designed for durability, these hydraulically-operated valves need no electricity, reducing the risk of wear and extending pump motor life. With their robust construction and consistent performance, Cycle Gard® valves are the epitome of reliability, offering reduced maintenance needs and a longer lifespan. Experience the trust and endurance of these valves, ensuring a resilient, dependable solution for your system’s pressure control needs.

IRRIGATION

N

Golf courses

N

Schools

N

Parks

N

Farms

N

Residential areas

BOOSTER PUMP SYSTEMS

N

Hotels

N

Restaurants

N

Manufacturing plants

N

Apartments & subdivisions

N

Well supply systems

WATER WELL PUMP SYSTEMS

N

Domestic water

N

Municipal water

N

Water well supply systems

Quality Guaranteed

Flomatic’s Cycle Gard Family of Constant Pressure Pump Control Valves are
Manufactured Under ISO 9001 and ISO 14001 Quality and Environmental Systems

Features &  Benefits

Flomatic’s model CB152 features a unique globe-style body, creating improved laminar flow. Internally, Cycle Gard® offers a slotted seat, effectively allowing for a self-cleaning operation.

N

Maintains a Constant Pressure

N

Stops Pump from Short Cycling

N

Hydraulically Operated

N

Extends Pump Motor Life

N

Helps Prevent Water Hammer Effects

N

More Compact System

N

Easy to Install

N

Field Adjustable

N

Downsize the Tank

N

Provides Efficient use of Appliances

Not Your Average CSV

Flomatic’s model CB152 features a unique globe-style body, creating improved laminar flow. Internally, Cycle Gard® offers a slotted seat, effectively allowing for a self-cleaning operation.

MAX PRESSURE: 400 PSI  MAX TEMPERATURE 180°F (60°C)

CERTIFIED LEAD-FREE
The Cycle Gard Family of Valves

A Peace of Mind

Cycle Gard | C152E

DIRECT-ACTING CONSTANT PRESSURE PUMP CONTROL VALVE

Cycle Gard | C152E

DIRECT-ACTING CONSTANT PRESSURE PUMP CONTROL VALVE

Reduces rapid pump cycling and maintains a pre-set operating pressure for pump systems. Threaded female x female connection. Features an unleaded body & composite bell housing, Nylon reinforced Buna-N diaphragm. Supplied with two FNPT tail piece and union nuts.

SIZE RANGE: 3/4" - 2"

SEE MODEL C152E

Cycle Gard | C152ET

DIRECT-ACTING CONSTANT PRESSURE PUMP CONTROL VALVE

Cycle Gard | C152ET

DIRECT-ACTING CONSTANT PRESSURE PUMP CONTROL VALVE

Dual purpose threads, reduces rapid pump cycling and maintains a pre-set operating pressure for pump systems. 1" threaded female I.D. x 1 ¼" male O.D. on inlet and outlet connections. Features an unleaded body & composite bell housing, Nylon reinforced Buna-N diaphragm.

SIZE RANGE: 1" F x 1 1/4" M

SEE MODEL C152ET

Cycle Gard | HY-FLOW C152EHF

DIRECT-ACTING CONSTANT PRESSURE PUMP CONTROL VALVE

Cycle Gard | HY-FLOW

HIGH FLOW DIRECT ACTING CONSTANT PRESSURE PUMP CONTROL VALVE

Reduces rapid pump cycling and maintains a pre-set operating pressure for pump systems. Threaded female x female connection. Features an unleaded body & composite bell housing, Nylon reinforced Buna-N diaphragm. Supplied with two FNPT tail piece and union nuts.

SIZE RANGE: 1-1/4" (32 mm)

SEE MODEL C152EHF

Cycle Gard | CB152ET - CB152E

DIRECT ACTING CONSTANT PRESSURE PUMP CONTROL VALVE WITH TAPPINGS

Cycle Gard | CB152ET - CB152E

DIRECT ACTING CONSTANT PRESSURE PUMP CONTROL VALVE WITH TAPPINGS

Reduces rapid pump cycling and maintains a pre-set operating pressure for pump systems. Threaded female x female union ends or female I.D. & male O.D. on inlet and outlet connections. Features a flow efficient globe style unleaded alloy body & composite bell housing, Nylon reinforced Buna-N diaphragm. With two (2) ¼" side tappings for gage and pressure switch. One (1) ¾" bottom tapping for water tank. Model CB152E supplied with two FNPT tail-piece and union nuts.

SIZE RANGE: 1"F & 1 1/4" M

SEE MODEL CB152ET

Cycle Gard | CB152SST

DIRECT-ACTING CONSTANT PRESSURE PUMP CONTROL VALVE

Cycle Gard | CB152SST

DIRECT-ACTING CONSTANT PRESSURE PUMP CONTROL VALVE WITH TAPPINGS

Reduces rapid pump cycling and maintains a pre-set operating pressure for pump systems. NPT threaded 1" female I.D. and 1-¼" male O.D. on inlet and outlet connections. Features a flow efficient globe style all stainless steel body & composite bell housing, Nylon reinforced Buna-N diaphragm. With two (2) ½" npt side tappings for gage, pressure switch, and relief valve, and one (1) ¾" npt bottom tapping for water tank.

SIZE RANGE:1" F X 1-1/4" M (25 mm X 32 mm)

SEE MODEL CB152SST

Cycle Gard | C153S6

CONSTANT PRESSURE PUMP CONTROL VALVE

Cycle Gard | C153S6

CONSTANT PRESSURE PUMP CONTROL VALVE

Reduces rapid pump cycling and maintains a preset system operating pressure independent from low or high flow conditions. Valve body is all stainless steel female NPT connection. The valve supports a hanging load up to 3,400 lbs. and fits in a 4" well casing. Dual purpose 1" female & 1 ¼" male design is rated for 1 - 20 GPM. The full port 1 ¼" female design is rated for 2 - 50 GPM.

SIZE RANGE: 1" F & 1 1/4" M

SEE MODEL C153S6

Cycle Gard II | CN101 - CNA101

CONSTANT PRESSURE PUMP CONTROL

Cycle Gard II | CN101 - CNA101

CONSTANT PRESSURE PUMP CONTROL VALVE

Reduces rapid pump cycle with field adjustable by-pass and maintains a pre-set operating downstream pressure.
For use with domestic water well, municipal water systems, industrial water system, irrigation and agriculture.

SIZE RANGE: 1 1/4" - 8" (32 mm - 200 mm)

SEE MODEL CN101 - CNA101

Cycle Gard CI | CIN101

CONSTANT PRESSURE PUMP CONTROL VALVE

Cycle Gard CI | CIN101

CONSTANT PRESSURE PUMP CONTROL VALVE

Reduces rapid pump cycle with field adjustable by-pass and maintains a pre-set operating downstream pressure. Ideal for irrigation, water wells and agriculture applications.

SIZE RANGE: 1 1/2" - 2" (40 mm - 50 mm)

SEE MODEL CIN101

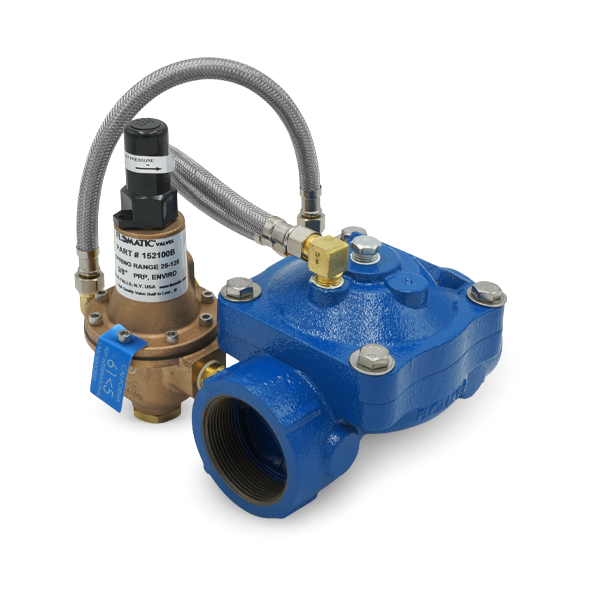

Cycle Gard CI2 | CIN101-2

CONSTANT PRESSURE PUMP CONTROL VALVE

Cycle Gard CI2 | CIN101-2

CONSTANT PRESSURE PUMP CONTROL VALVE

Reduces rapid pump cycle and maintains a pre-set operating downstream pressure. Ideal for irrigation, water wells and agriculture. Built in by-pass at 5 GPM.

SIZE RANGE: 1 1/2" - 2" (40 mm - 50 mm)

SEE MODEL CIN101-2
Cycle Gard - 3 Year Warranty Standard

Defend Against Variable Pressure and
Protect Your Pump Today.

Download the Cycle Gard literature and connect with one of our technical team
members by completing this form or give us a call at 518.761.9797
