Pressure Reducing Valve (PRV)

Automatic Control Valves, Pressure Reducing Valves

A Pressure Reducing Valve (PRV) is an Automatic Control Valve designed to reduce a higher unregulated inlet pressure to a constant, reduced downstream (outlet) pressure regardless of variations in demand and/or upstream (inlet) water pressure.

Pilot Operated Pressure Reducing Valves

The throttled position of the main valve is controlled by an adjustable pilot valve operating in conjunction with an orifice (or needle valve). The pilot valve senses the downstream (outlet) pressure and reacts immediately as the outlet pressure increases or decreases with varying demand.

The pilot senses the downstream (outlet) pressure and reacts immediately to add or remove water from the top of the main valve diaphragm assembly, allowing the valve to reposition and throttle as the outlet pressure tends to increase or decrease with varying flow demand. The pilot diaphragm will automatically sense the changes in the flow of the system as it continuously controls the main valve to throttle or to open or close and maintain the desired, preset reduced outlet pressure. The throttling action of the main valve provides the required reduced downstream pressure.

Click on a link below for pressure valve applications and specifications and to enter a RFQ.

C101 / CF101 C101 / CF101 1 1/4 - 36 inch (40 mm - 900 mm) Submit RFQ
C101B / CF101B C101B / CF101B 1 1/4 to 36 inch. Submit RFQ

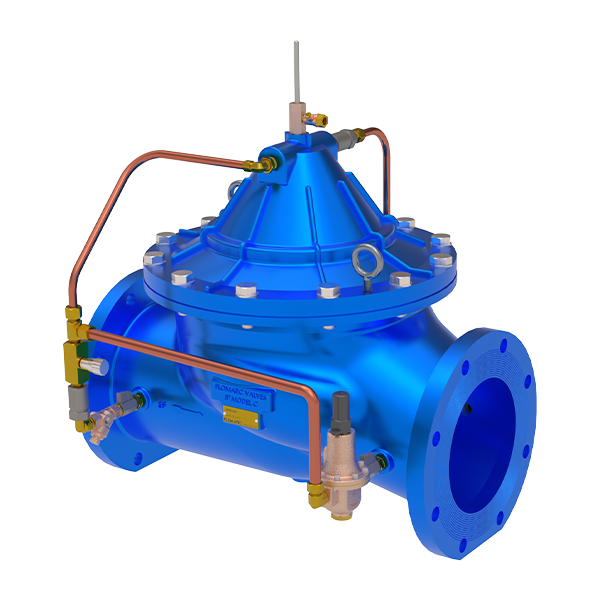

C103 / CF103 C103 / CF103 1 1/4 - 36 inch (32 mm - 300 mm) Submit RFQ
C104 / CF104 C104 / CF104 1 1/4 to 36 inch (32 to 300 mm) Submit RFQ
C105 / C106 C105 / C106 1 1/4 to 36 inch (32 to 300 mm) Submit RFQ
C150E / C150ET C150E / C150ET 1/2 - 2 inch (15 mm - 50 mm) Submit RFQ
C150EHF C150EHF 1 1/4 inch (32 mm) Submit RFQ
