208T/S

SIZE RANGE: 1 - 2 inch (25 mm - 50 mm) MAX TEMP: 150°F (65°C) MAX PRESSURE: 150 PSI

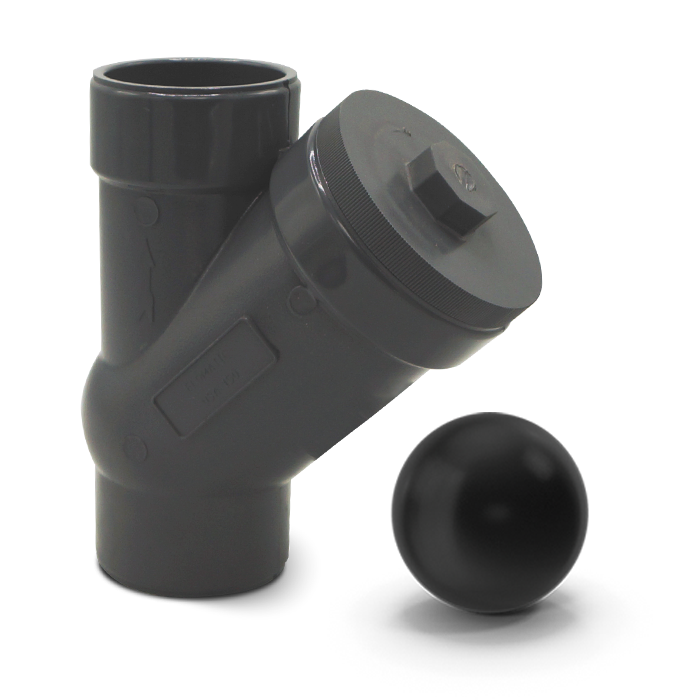

208T/S - PVC engineered plastic body and clean‑out access port with either female x female threaded connections (Model 208T) or socket‑weld connections (Model 208S). Buna-N rubber‑covered metal sinking ball and Buna-N seal.

Not suitable for ground burial applications.



NSF/ANSI 372 Low Lead 1 Year

Discount Code B
FOB Factory

SUBMIT RFQ

208T/S

MODEL: 208T/S3D and AR View Available

[Click each tab for more detailed product information.]

208T/S Manuals

208T/S CAD

3. Complete the form below to download the requested file

Please note that your download may take a few moments as we gather and output your selected resources.
Additionally, some browsers may prevent the download, so please check your settings accordingly.

Sizes and Prices

Part Number Size Weight Spring Range Stainless Steel
List Price Carbon Steel
List Price Case Qty Style Plug Size Cracking Pressure By Pass Outlet Inlet Part #
Threaded Part #
Flanged 150 List Price
2131T*  1" 1 $62.84
2132T 1 1/4" 1 $65.93
2133T*  1 1/2" 2 $98.90
2134T 2" 2 $98.90

NOTE: For BSPP threaded connections, change part number from "T" to "P". For socket-weld connections, change part number from "T" to "S". Consult factory for details and pricing.

* Supplied with two bushings in the carton.
