Silent Globe Valves

Flomatic® Corporation manufactures a silent globe valve with the following specifications.

The double guided spring loaded poppet system maximizes efficiency and reduces water hammer while preventing flow reversal. Drop tight closure is assured with specially lapped bronze to bronze seats. The stainless provides for long maintenance free operation. Designed for flanged installation, this valve will operate well in any position.
Silent Check Valves are manufactured with cast iron body and epoxy coating. Flanged connection ANSI 125. Metal to metal seating with stainless steel spring.

Silent Globe Valve

A globe style silent check valve is a type of valve used for regulating flow in a pipeline, consisting of a movable disk-type element and a stationary ring seat in a generally spherical body.

Globe style silent check valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle. This has an opening that forms a seat onto which a movable plug can be screwed in to close (or shut) the valve. The plug is also called a disc or disk. In globe valves, the plug is connected to a stem which is operated by screw action in manual valves. Typically, automated valves use sliding stems. Automated globe valves have a smooth stem rather than threaded and are opened and closed by an actuator assembly. When a globe valve is manually operated, the stem is turned by a handwheel.

Although globe valves in the past had the spherical bodies which gave them their name, many modern globe valves do not have much of a spherical shape. However, the term globe valve is still often used for valves that have such an internal mechanism. In plumbing, valves with such a mechanism are also often called stop valves since they don’t have the global appearance, but the term stop valve may refer to valves which are used to stop flow even when they have other mechanisms or designs.

Globe style silent check valves are used for applications requiring throttling and frequent operation. For example, globe valves or valves with a similar mechanism may be used as sampling valves, which are normally shut except when liquid samples are being taken. Since the baffle restricts flow, they’re not recommended where full, unobstructed flow is required.

Click on a link below to view silent check valve applications and specifications and to enter a RFQ.

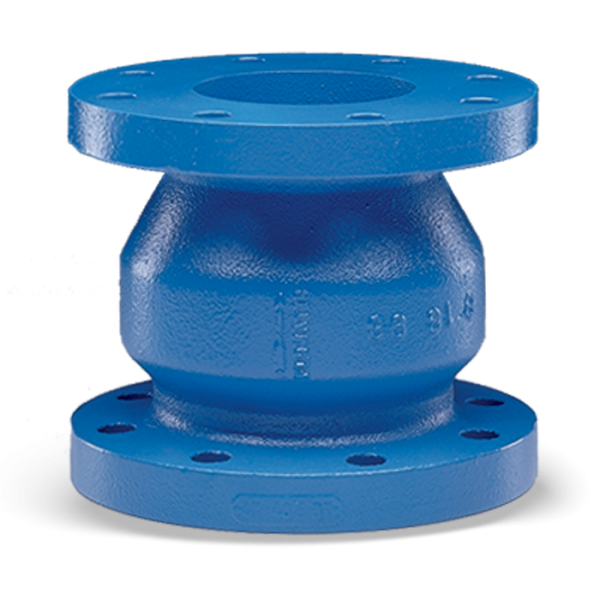

402BT/BTR & 402ST/STR 402BT/BTR & 402ST/STR 2 - 24 inch (50 mm - 600 mm) Submit RFQ

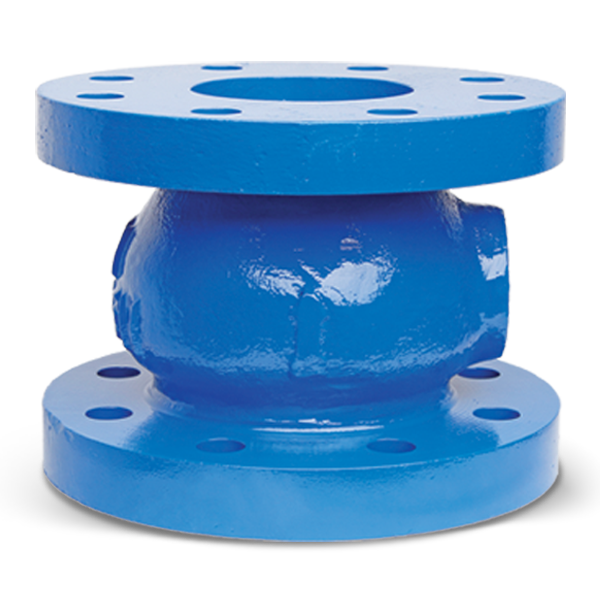

402BTR2 402BTR2 2 1/2 - 12 inch (65 mm - 300 mm) Submit RFQ
402S6/402S6R 402S6/402S6R 2 - 12 inch (50 mm -300 mm) Submit RFQ
