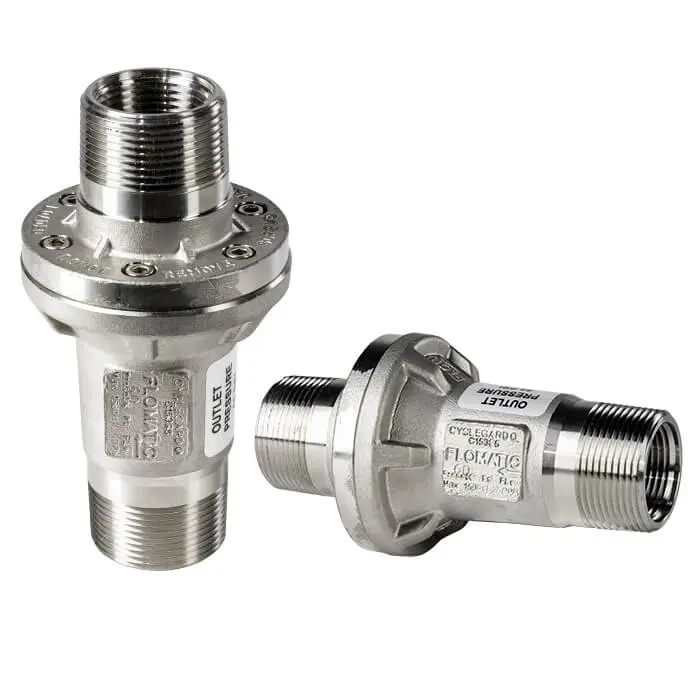

CYCLE GARD® C153S6

SIZE RANGE: 1 in F & 1 1/4 in M MAX TEMP: 180°F MAX PRESSURE: 150 PSI

CONSTANT PRESSURE PUMP CONTROL VALVE Reduces rapid pump cycling and maintains a preset system operating pressure independent from low or high flow conditions. Valve body is all stainless steel female NPT connection. The valve supports a hanging load up to 3,400 lbs. and fits in a 4" well casing. Dual purpose 1" female & 1 ¼" male design is rated for 1 - 20 GPM. The full port 1 ¼" female design is rated for 2 - 50 GPM.

PLEASE NOTE: The valve pressure setting must be below the pressure switch-off setting. Consult O&M manual for proper installation.

NSF/ANSI 372 Low Lead

Warranty: 3 Years

Discount Code A
$2,000 NET FFA

SUBMIT RFQ

CYCLE GARD® C153S6

CYCLE GARD® C153S6 Manuals

CYCLE GARD® C153S6 CAD

3. Complete the form below to download the requested file

Please note that your download may take a few moments as we gather and output your selected resources.
Additionally, some browsers may prevent the download, so please check your settings accordingly.

CYCLE GARD® C153S6 Literature

Sizes and Prices

Part Number Size Weight Spring Range Stainless Steel
List Price
Carbon Steel
List Price
Case Qty Style Plug Size Cracking Pressure By Pass Outlet Inlet Part #
Threaded
Part #
Flanged 150
List Price
C153002S6A 1" F x 1 1/4" M 40 PSI 1 $442
C153002S6A-3*  1" F x 1 1/4" M 40 PSI 3 $442
C153003S6A 1 1/4" F 40 PSI 1 $662
C153003S6A-3*  1 1/4" F 40 PSI 3 $662
C153002S6 1" F x 1 1/4" M 50 PSI 1 $442
C153002S6-3*  1" F x 1 1/4" M 50 PSI 3 $442
C153003S6 1 1/4" F 50 PSI 1 $662
C153003S6-3*  1 1/4" F 50 PSI 3 $662
C153002S6B 1" F x 1 1/4" M 60 PSI 1 $442
C153002S6B-3*  1" F x 1 1/4" M 60 PSI 3 $442
C153003S6B 1 1/4" F 60 PSI 1 $662
C153003S6B-3*  1 1/4" F 60 PSI 3 $662
C153002S6C 1" F x 1 1/4" M 70 PSI 1 $442
C153002S6C-3*  1" F x 1 1/4" M 70 PSI 3 $442

NOTE: Factory set at 50 PSI standard part number above. For 40 PSI add "A", for 60 PSI add "B", and for 70 PSI add "C" to the end of the part number. The same prices apply.

* 3 GPM bypass, recommended for 3 HF and 5 HP pump.
