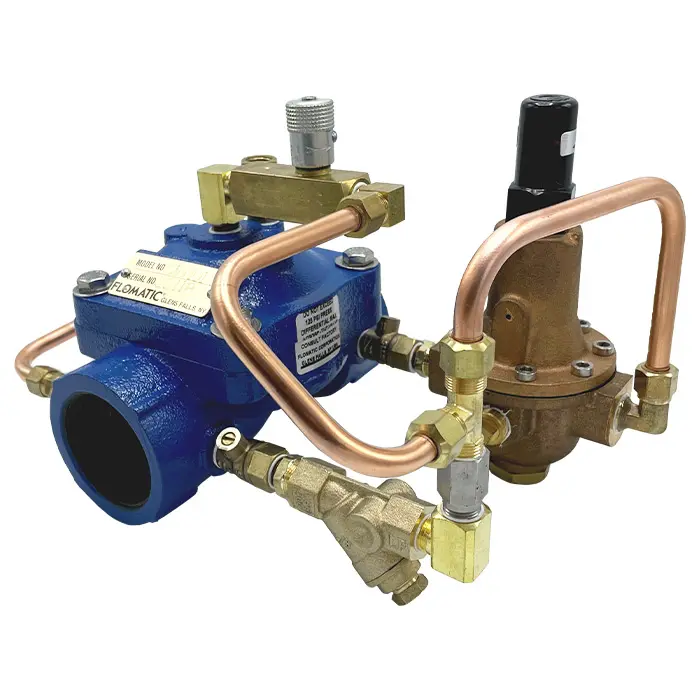

CYCLE GARD® CI CIN101

SIZE RANGE: 1 1/2 - 2 inch (40 mm - 50 mm) MAX TEMP: 180°F (80°C) MAX PRESSURE: 250 PSI

CONSTANT PRESSURE PUMP CONTROL VALVE Reduces rapid pump cycle with field adjustable by-pass and maintains a pre-set operating downstream pressure.

Factory set at 50 PSI

3 Years

Discount Code A
$2,000 NET FFA

SUBMIT RFQ

CYCLE GARD® CI CIN101

MODEL: CYCLE GARD® CI CIN1013D and AR View Available

[Click each tab for more detailed product information.]

CYCLE GARD® CI CIN101 Manuals

CYCLE GARD® CI CIN101 CAD

3. Complete the form below to download the requested file

Please note that your download may take a few moments as we gather and output your selected resources.
Additionally, some browsers may prevent the download, so please check your settings accordingly.

CYCLE GARD® CI CIN101 Literature

Sizes and Prices

Part Number Size Weight Spring Range Stainless Steel
List Price Carbon Steel
List Price Case Qty Style Plug Size Cracking Pressure By Pass Outlet Inlet Part #
Threaded Part #
Flanged 150 List Price
CIN1020C*  1 1/2" $1,732
CIN1020D*  2" $2,029

Max pressure differental between inlet and outlet pressure 125 PSI. Consult factory for higher pressure differental.

* Threaded female
