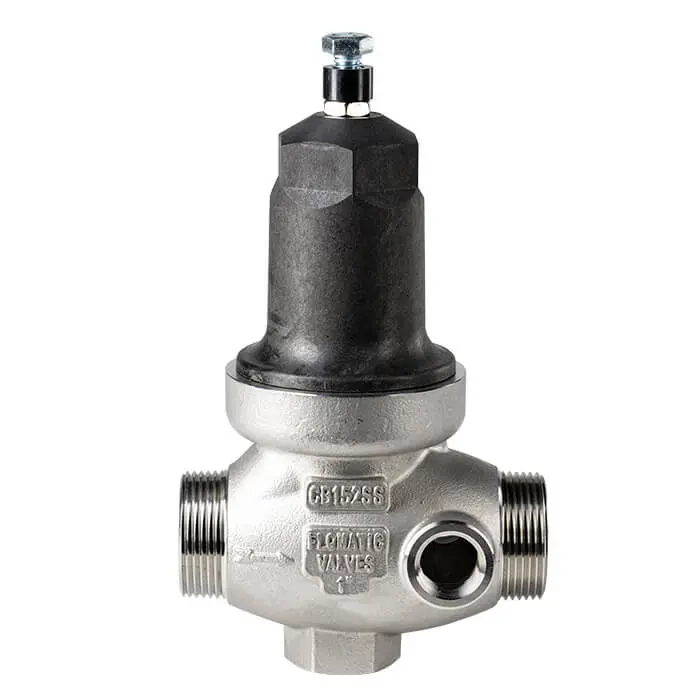

CYCLE GARD® IV CB152SST
SIZE RANGE: 1 in F & 1 1/4 in M MAX TEMP: 180°F (80°C) MAX PRESSURE: 400 PSI
DIRECT ACTING CONSTANT PRESSURE PUMP CONTROL VALVE WITH TAPPINGS - Reduces rapid pump cycling and maintains a pre-set operating pressure for pump systems. NPT threaded 1" female I.D. and 1 ¼" male O.D. on inlet and outlet connections. Features a flow efficient globe style all stainless steel body & composite bell housing, Nylon reinforced Buna-N diaphragm. With two (2) ½" tappings for gage, pressure switch, and relief valve, and one (1) ¾" tapping for water tank.
Temp Max: 180°F (80°C) Pressure Max 400 PSI
Factory set at 50 PSI
CYCLE GARD® IV CB152SST Specifications
CYCLE GARD® IV CB152SST Manuals
CYCLE GARD® IV CB152SST Literature
Sizes and Prices
Part Number
Size
Weight
Spring Range
Stainless Steel
List Price Carbon Steel
List Price Case Qty Style Plug Size Cracking Pressure By Pass Outlet Inlet Part #
Threaded Part #
Flanged 150 List Price
List Price Carbon Steel
List Price Case Qty Style Plug Size Cracking Pressure By Pass Outlet Inlet Part #
Threaded Part #
Flanged 150 List Price
CB152001SST
1" F x 1 1/4"M
15 - 75 PSI
$460.00
CB152101SST
1" F x 1 1/4"M
15 - 150 PSI
$460.00
