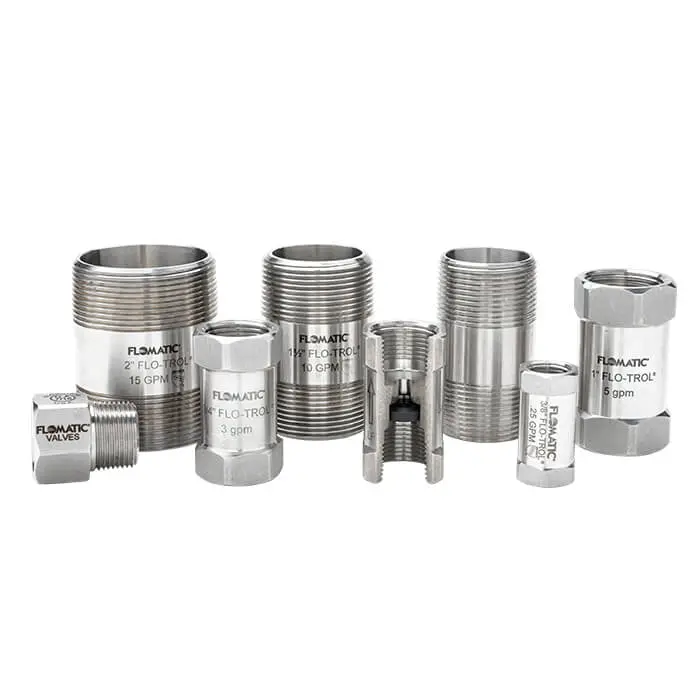

Flo-Trol CD900

SIZE RANGE: 3/8 - 2-1/2 inch (10 mm - 63.5 mm) MAX TEMP: 180°F (80°C) MAX PRESSURE: 200 PSI

Flo-Trol® automatic flow control valves are designed to give constant flow over a wide pressure range. The internal controlling mechanism has no moving part, consisting only of a flexible orifice that varies with applied pressure maintaining a constant flow rate.

Flow rates are maintained to within ±15% between 15 and 125 PSI (1 to 8.6 bar). The flow rate varies due to manufacturing tolerances and water temperatures. Valve bodies are stainless steel (not chrome or nickel-plated brass) with a Buna-N orifice (NSF/ANSI 61 certified).

• Constant Flow Rates
• Booster Pump Systems
• Domestic Water Systems
• Sizes 3/8" thru 2 1/2” (0.25 - 30 GPM*)
• NSF/ANSI 61 and 372 Certified
• Stainless Steel Construction
• Laser engraved flow rate and size

NSF/ANSI 61

Warranty: 1 Year

Discount Code A
$1,500 NET FFA

SUBMIT RFQ

Sizes and Prices

Part Number Size Weight Spring Range Stainless Steel
List Price
Carbon Steel
List Price
Case Qty Style Plug Size Cracking Pressure By Pass Outlet Inlet Part #
Threaded
Part #
Flanged 150
List Price
CDA.25 ⅜"F X ⅜"F 0.25 GPM $25.85
CDA.50 ⅜"F X ⅜"F 0.5 GPM $25.85
CDA.75 ⅜"F X ⅜"F 0.75 GPM $25.85
CDA1.0 ⅜"F X ⅜"F 1 GPM $25.85
CDB1.0 ½"F X ½"F 1 GPM $32.00
CDB1.5 ½"F X ½"F 1.5 GPM $32.00
CDB2.0 ½"F X ½"F 2 GPM $32.00
CDB2.5 ½"F X ½"F 2.5 GPM $32.00
CDB3.0 ½"F X ½"F 3 GPM $32.00
CDB3.5 ½"F X ½"F 3.5 GPM $32.00
CDB4.0 ½"F X ½"F 4 GPM $32.00
CDB4.5 ½"F X ½"F 4.5 GPM $32.00
CDB5.0 ½"F X ½"F 5 GPM $32.00
CDB6.0 ½"F X ½"F 6 GPM $32.00
CDC1.0 ¾"F X ¾"F 1 GPM $63.00
CDC1.5 ¾"F X ¾"F 1 GPM $63.00
CDC2.0 ¾"F X ¾"F 2 GPM $63.00
CDC2.5 ¾"F X ¾"F 2.5 GPM $63.00
CDC3.0 ¾"F X ¾"F 3 GPM $63.00
CDC3.5 3/4" F x 3/4" F 3.5 GPM $63.00
CDC4.0 ¾"F X ¾"F 3.5 GPM $63.00
CDC4.5 ¾"F X ¾"F 4 GPM $63.00
CDC5.0 ¾"F X ¾"F 4.5 GPM $63.00
CDC6.0 ¾"F X ¾"F 5 GPM $63.00
CDC7.0 ¾"F X ¾"F 6 GPM $63.00
CDC8.0 ¾"F X ¾"F 7 GPM $63.00
CDC9.0 ¾"F X ¾"F 8 GPM $63.00
CDC10 ¾"F X ¾"F 9 GPM $63.00
CDC11.5 ¾"F X ¾"F 10 GPM $63.00
CDY1.0 ¾"M X ¾"F 1 GPM $63.00
CDY1.5 ¾"M X ¾"F 1.5 GPM $63.00
CDY2.0 ¾"M X ¾"F 2 GPM $63.00
CDY2.5 ¾"M X ¾"F 2.5 GPM $63.00
CDY3.0 ¾"M X ¾"F 3 GPM $63.00
CDY3.5 ¾"M X ¾"F 3.5 GPM $63.00
CDY4.0 ¾"M X ¾"F 4 GPM $63.00
CDY4.5 ¾"M X ¾"F 4.5 GPM $63.00
CDY5.0 ¾"M X ¾"F 5 GPM $63.00
CDY6.0 ¾"M X ¾"F 6 GPM $63.00
CDY7.0 ¾"M X ¾"F 7 GPM $63.00
CDY8.0 ¾"M X ¾"F 8 GPM $63.00
CDY9.0 ¾"M X ¾"F 9 GPM $63.00
CDY10.0 ¾"M X ¾"F 10 GPM $63.00
CDY11.5 ¾"M X ¾"F 11.5 GPM $63.00
CDX1.0 1"F X 1"F 1 GPM $80.00
CDX1.5 1"F X 1"F 1.5 GPM $80.00
CDX2.0 1"F X 1"F 2 GPM $80.00
CDX2.5 1"F X 1"F 2.5 GPM $80.00
CDX3.0 1"F X 1"F 3 GPM $80.00
CDX3.5 1"F X 1"F 3.5 GPM $80.00
CDX4.0 1"F X 1"F 4 GPM $80.00
CDX4.5 1"F X 1"F 4.5 GPM $80.00
CDX5.0 1"F X 1"F 5 GPM $80.00
CDX6.0 1"F X 1"F 6 GPM $80.00
CDX7.0 1"F X 1"F 7 GPM $80.00
CDX8.0 1"F X 1"F 8 GPM $80.00
CDX9.0 1"F X 1"F 9 GPM $80.00
CDX10 1"F X 1"F 10 GPM $80.00
CDX12 1"F X 1"F 12 GPM $80.00
CDX15 1"F X 1"F 15 GPM $80.00
CDX17 1"F X 1"F 17 GPM $80.00
CDX20 1"F X 1"F 20 GPM $80.00
CDX25 1"F X 1"F 25 GPM $80.00
CDX30 1"F X 1"F 30 GPM $80.00
CDP1.0 1 ¼"M X 1 ¼"M 1 GPM $116.00
CDP1.5 1 ¼"M X 1 ¼"M 1.5 GPM $116.00
CDP2.0 1 ¼"M X 1 ¼"M 2 GPM $116.00
CDP2.5 1 ¼"M X 1 ¼"M 2.5 GPM $116.00
CDP3.0 1 ¼"M X 1 ¼"M 3 GPM $116.00
CDP3.5 1 ¼"M X 1 ¼"M 3.5 GPM $116.00
CDP4.0 1 ¼"M X 1 ¼"M 4 GPM $116.00
CDP4.5 1 ¼"M X 1 ¼"M 4.5 GPM $116.00
CDP5.0 1 ¼"M X 1 ¼"M 5 GPM $116.00
CDP6.0 1 ¼"M X 1 ¼"M 6 GPM $116.00
CDP7.0 1 ¼"M X 1 ¼"M 7.0 GPM $116.00
CDP8.0 1 ¼"M X 1 ¼"M 8 GPM $116.00
CDP9.0 1 ¼"M X 1 ¼"M 9 GPM $116.00
CDP10 1 ¼"M X 1 ¼"M 10 GPM $116.00
CDP12 1 ¼"M X 1 ¼"M 12 GPM $116.00
CDP15 1 ¼"M X 1 ¼"M 15 GPM $116.00
CDP17 1 ¼"M X 1 ¼"M 17 GPM $116.00
CDP20 1 ¼"M X 1 ¼"M 20 GPM $116.00
CDP25 1 ¼"M X 1 ¼"M 25 GPM $116.00
CDP30 1 ¼"M X 1 ¼"M 30 GPM $116.00
CDT9.0 1 ½"M X 1 ½"M 9.0 GPM $142.00
CDT10 1 ½"M X 1 ½"M 10 GPM $142.00
CDT12 1 ½"M X 1 ½"M 12 GPM $142.00
CDT15 1 ½"M X 1 ½"M 15 GPM $142.00
CDT17 1 ½"M X 1 ½"M 17 GPM $142.00
CDT20 1 ½"M X 1 ½"M 20 GPM $142.00
CDT25 1 ½"M X 1 ½"M 25 GPM $142.00
CDT30 1 ½"M X 1 ½"M 30 GPM $142.00
CDF9.0 2"M X 2"M 9.0 GPM $242.00
CDF10 2"M X 2"M 10 GPM $242.00
CDF12 2"M X 2"M 12 GPM $242.00
CDF15 2"M X 2"M 15 GPM $242.00
CDF17 2"M X 2"M 17 GPM $242.00
CDF20 2"M X 2"M 20 GPM $242.00
CDF25 2"M X 2"M 25 GPM $242.00
CDF30 2"M X 2"M 30 GPM $242.00
