C101B - PRESSURE REDUCING VALVE WITH LOW FLOW BY-PASS
SIZE RANGE: 1 1/4 to 36 inch.

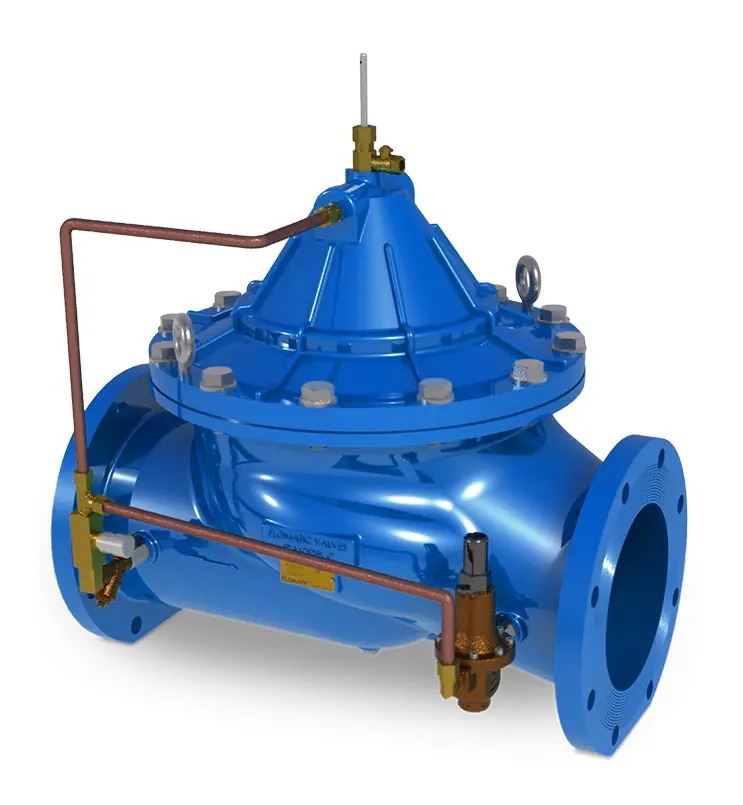

Pressure reducing valve with low flow by-pass. Automatically reduces higher unregulated upstream pressure to a lower steady downstream pressure (adjustable) regardless of fluctuations in inlet pressure or flow. The low flow by-pass is accomplished by using the Model C150E as a primary part of the main valve.
Configurations:
Model C - Full Port Globe Style (Flanged or Threaded)
Model CF - Reduced Port Globe Style (Flanged)
Model CA - Angle Body Style (Flanged or Threaded)
[Click each tab for more detailed product information.]
C101B - PRESSURE REDUCING VALVE WITH LOW FLOW BY-PASS Specifications
- C101/CF101B PIPING SCHEMATIC
- C/CA000 MAIN BODY SPECIFICATION 1-1/4" THRU 2" FULL PORT
- C/CA000 MAIN BODY SPECIFICATION 2-1/2" THRU 4" FULL PORT
- C/CA000 MAIN BODY SPECIFICATION 5" THRU 12" FULL PORT
- C/CA000 MAIN BODY SPECIFICATION 16" THRU 30" FULL PORT
- CF/CFA000 MAIN BODY SPECIFICATION 2-1/2" THRU 6" REDUCED PORT
- CF/CFA000 MAIN BODY SPECIFICATION 8" THRU 36" REDUCED PORT
- C/CF 101B PIPING SCHEMATIC
- C101B WRITTEN SPECIFICATION
- C HEADLOSS CHART & CV VALVES
- CA HEADLOSS CHART
- CAVITATION CHART
- ASME FLANGE DIMENSION CHART 125#, 150#, 250# & 300#
C101B - PRESSURE REDUCING VALVE WITH LOW FLOW BY-PASS Manuals
C101B - PRESSURE REDUCING VALVE WITH LOW FLOW BY-PASS Literature
| Size | C/CA Threaded | CF Model 150# | C/CA Flanged 150# | C/CA Flanged 300# |
|---|---|---|---|---|
| 2" | $3,429 | $4,071 | $4,210 | |
| 2 1/2" | $4,032 | $4,222 | $4,657 | |
| 3" | $4,251 | $4,297 | $4,728 | |
| 4" | $4,394 | $5,246 | $5,585 | |
| 6" | $6,147 | $7,717 | $8,268 |
Note: Standard includes 3/4” Model C150E as bypass Consult factory for larger sizes
